View ASME SA511 Boiler Tubing Tolerances & Specification

ASTM A511 Stainless Steel Tube

ASTM A511 Stainless Steel Tube

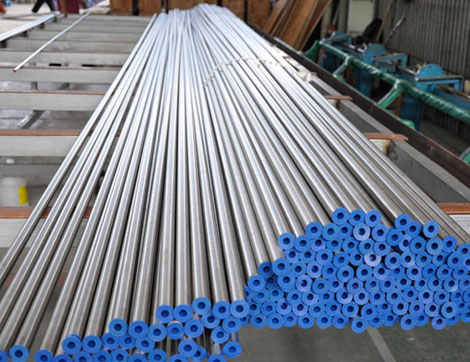

ASME SA511 Boiler Tubing

ASME SA511 Boiler Tubing

ASTM A511 Tubing

ASTM A511 Tubing

Check Price list of ASTM A511 Tubing

ASTM A511 Stainless Steel Tube Specification

Specification List of ASTM A511 Stainless Steel Tube

1

Size

5 – 1219.2 mm
2

Outer Dimensions

4mm – 60mm
3

Swg & Bwg

10Swg, 12Swg, 14Swg, 16Swg, 18Swg, 20Swg
4

Length

Single/Double Random, Cut length Pipe & Standard
5

Finish

Polished, BA, AP, MF, 2B, NO.1, HL, NO.4, BA, Mirror finish, 8K, etc
6

Form

Round, Hollow, Rectangular, Square, Straight Pipes, Hydraulic, Coiled,
“U” Shape,
7

Types

Seamless / Welded / ERW / Fabricated / EFW / DOM / CDW / CEW
8

Certificate

Manufacturer & Laboratory Test Certificate, Third Party Inspection



Different Types of ASTM A511 Tubing

ASTM A511 Seamless Steel Pipe

ASTM A511 Seamless Steel Pipe

ASME SA511 Boiler Tube

ASME SA511 Boiler Tube

ASTM A511 304 Tubing

ASTM A511 304 Tubing

ASTM A511 316 Square Tube

ASTM A511 316 Square Tube

ASME Sa-511 Boiler Tube

ASME Sa-511 Boiler Tube

ASTM A511 Seamless Tube

ASTM A511 Seamless Tube

SA511M Seamless Tubes

SA511M Seamless Tubes

Steel SA511 Seamless Tube

Steel SA511 Seamless Tube

View Price List of ASME SA511 Boiler Tubing

304/304L seamless stainless steel pipe, ASTM A511 type 350/kg AED 17.40 /kg

Stockist of ASTM A511 Seamless Steel Pipe in Mumbai, India

Mechanical Properties of ASTM A511 Seamless Steel Pipe

Grade Density( g/cm3) Melting Point(°C) Tensile Strength(MPa) Yield Strength (MPa) Elongation(%)
304/ 304L 8.0 1400 515 205 35
304H 40
310 / 310S / 310H 7.9 1402
306/ 316H 8.0 1400 35
316L 1399
317 7.9 1400
321 8.0 1457
347 1454
904L 7.95 1350 490 220

Chemical Composition of ASME Sa-511 Boiler Tube

Grade Carbon Manganese Silicon Phosphorus Sulfur Chromium Molybdenum Nickel Nitrogen Titanium Iron
304 .08 2 .75 .045 .030 18-2 8-10.5 .10
304L .030 8-12
304H .04-.010 8-10.5
SS 310 .015 .015 .020 .015 24-26 .10 19-21 54.7
SS 310S .08 1 .045 .030 .75 53.095
SS 310H .04-.10 53.885
316 .035 2 0.75 16-18 2-3 1-14
316L
316TI .08 10-14 2 .75 2-3
317 2 1 18-20 3 4 57.845
SS 317L .035 11-15 57.89
SS 321 .08 17-19 9-12 .10 5(C+N) .70
SS 321H .04-.10 4(C+N) .70
347/ 347H .08 17-20 9-13
410 .15 1 .040 11.5-13.5 .75
446 .2 1.5 0.75 23-3 .50 .10-.25
904L .20 2 1 .045 .035 19-23 4-5 23-28

Equivalent Grade of ASTM A511 304 Tubing

STANDARD SS 304 SS 304L SS 304H SS 310 SS 310S SS 310H SS 316 SS 316L SS 316H SS 316Ti SS 317 SS 317L SS 321 SS 321H SS 347 SS 347H SS 904L
WERKSTOFF NR. 1.4301 1.4306 / 1.4307 1.4301 1.4841 1.4845 1.4401 / 1.4436 1.4404 / 1.4435 1.4401 1.4571 1.4449 1.4438 1.4541 1.4878 1.455 1.4961 1.4539
UNS S30400 S30403 S30409 S31000 S31008 S31009 S31600 S31603 S31609 S31635 S31700 S31703 S32100 S32109 S34700 S34709 N08904
BS 304S31 3304S11 310S24 310S16 316S31 / 316S33 316S11 / 316S13 320S31 904S13
GOST 08Х18Н10 03Х18Н11 20Ch25N20S2 20Ch23N18 03Ch17N14M3 / 03Ch17N14M2 08Ch17N13M2T 08Ch18N12B STS 317J5L
AFNOR Z7CN18‐09 Z3CN18‐10 Z7CND17‐11‐02 Z3CND17‐11‐02 / Z3CND18‐14‐03 Z6CNDT17‐123 Z2 NCDU 25-20
EN X5CrNi18-10 X2CrNi18-9 / X2CrNi19-11 X15CrNi25-20 X8CrNi25-21 X5CrNiMo17-12-2 / X3CrNiMo17-13-3 X2CrNiMo17-12-2 / X2CrNiMo18-14-3 X6CrNiMoTi17-12-2 X2CrNiMo18-15-4 X6CrNiTi18-10 X12CrNiTi18-9 X6CrNiNb18-10 X6CrNiNb18-12 X1NiCrMoCu25-20-5
ASME SA511 Boiler Tube in various sizes and diameters in stock

A511 Seamless Stainless Steel Mechanical Tube Tolerances

Size(inche) ODB Above/Below,In. Wall CD Above/Below % Cut Length (inche) When the wall is: OvalityB Double Outside Diameter Tolerance
Under 1/2 0.005 15 +1/8-0 < 0.015
1/2 to 1-1/2 excl. 10 < 0.065
1-1/2 to 3-1/2 excl. 0.010 +3/16-0 < 0.095
3-1/2 to 5-1/2 excl. 0.015 < 0.150
5-1/2 to 8 excl. 0.030 < 0.240
8 to 8-5/8 excl. 0.045 < 0.300

Tolerances of ASME SA511 Hot Finished Round Tube

Size,-O.D,-(inch) Wall-Thickness-to O.D. Tolerances Cut-Length-(inch.A)
O.D,-(inch) Wall Thickness, %
.109, (inch)-and under .109 – .172-(inch) Over .172– .203-(inch) Over-.203, (inch)
Over Under Over Under Over Under Over Under Over Under
Under 3 all wall-thicknesses 0.023 0.023 16.5 16.5 15 15 14 14 12.5 12.5 3/16 0
3 to 5-1/2-excl. 0.031 0.031
5-1/2 to 8-excl. 0.047 0.047
8 to 10-3/4-excl 5% and over 0.047 0.047
10-3/4 to 12-3/4 incl. under 5% 0.063 0.063
Refer Pressure Rating of ASTM A511 304 Square Tubing
